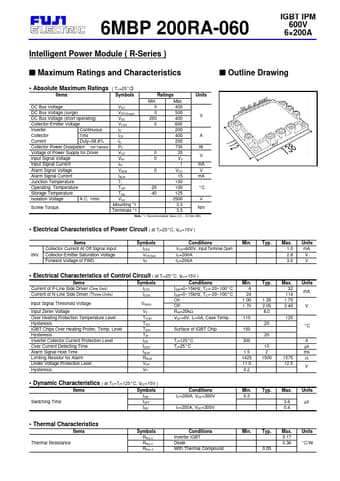

6MBP 200RA-060 IGBT IPM 600V 6×200A Intelligent Power Module ( R-Series ) n Maximum Ratings and Characteristics n Outline Drawing Absolute Maximum Ratings ( Tc=25°C) Items Symbols Ratings Units Min. Max. DC Bus Voltage VDC 0 450 DC Bus Voltage (surge) DC Bus Voltage (short operating) VDC(Surge) VSC 0 200 500 400 V Collector-Emitter Voltage VCES 0 600 Inverter Continuous IC 200 Collector 1ms ICP 400 A Current Duty=58.8% -IC 200 Collector Power Dissi.
