Monitor collector current of every IGBT, and protect against overcurrent by cutting off the current Protects against short circuit current by cutting off the current by the same means as overcurrent protection When the current was concentrated to the chip which was located on the far side from the .

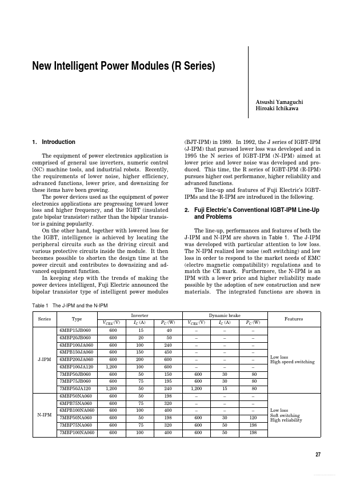

New Intelligent Power Modules (R Series) Atsushi Yamaguchi Hiroaki Ichikawa 1. Introduction The equipment of power electronics application is comprised of general use inverters, numeric control (NC) machine tools, and industrial robots. Recently, the requirements of lower noise, higher efficiency, advanced functions, lower price, and downsizing for these items have been growing. The power devices used as the equipment of power electronics applications are progressing toward lower loss and highe.

6MBP20JB060 Features

* of Fuji Electric’s IGBTIPMs and the R-IPM are introduced in the following. 2. Fuji Electric’s Conventional IGBT-IPM Line-Up and Problems The line-up, performances and features of both the J-IPM and N-IPM are shown in Table 1. The J-IPM was developed with particular attention to low loss. The N-IPM
