6MBP50XBA120-50 - IGBT

Product Overview

Fuji Electric

Part number	6MBP50XBA120-50
Manufacturer	Fuji Electric
File Size	1.31 MB
Description	IGBT
Datasheet	6MBP50XBA120-50 Datasheet

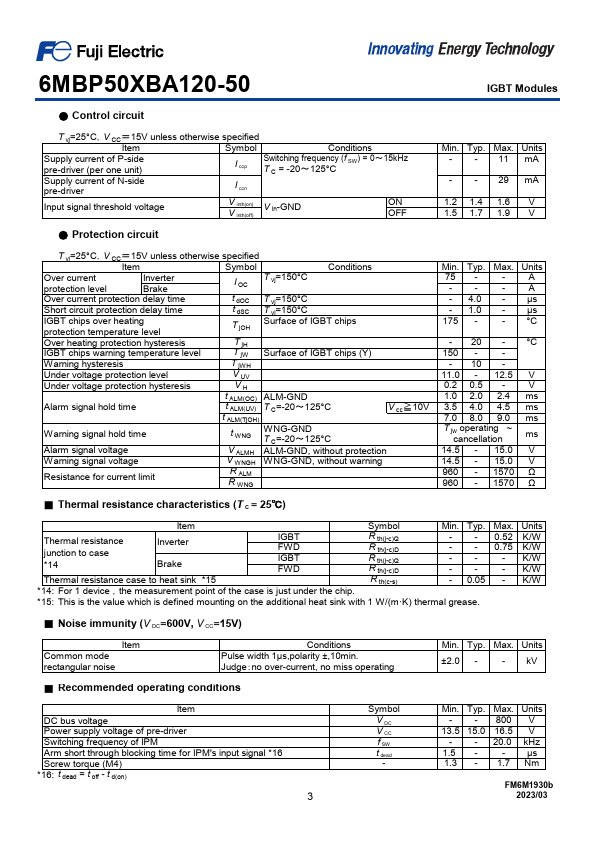

Additional preview pages of the 6MBP50XBA120-50 datasheet.

s Temperature protection provided by directly detecting the junction temperature of the IGBTs Low power loss and soft switching High performance and high reliability IGBT with overheating protection Higher reliability because of a big decrease in number of parts in built-in control circuit.
Outline drawing ( Unit : mm ) IGBT Modules Indication on module 1 W eight:100g(typ. ) FM6M1930b 2023/03 6MBP50XBA120-50 IGBT Modules.

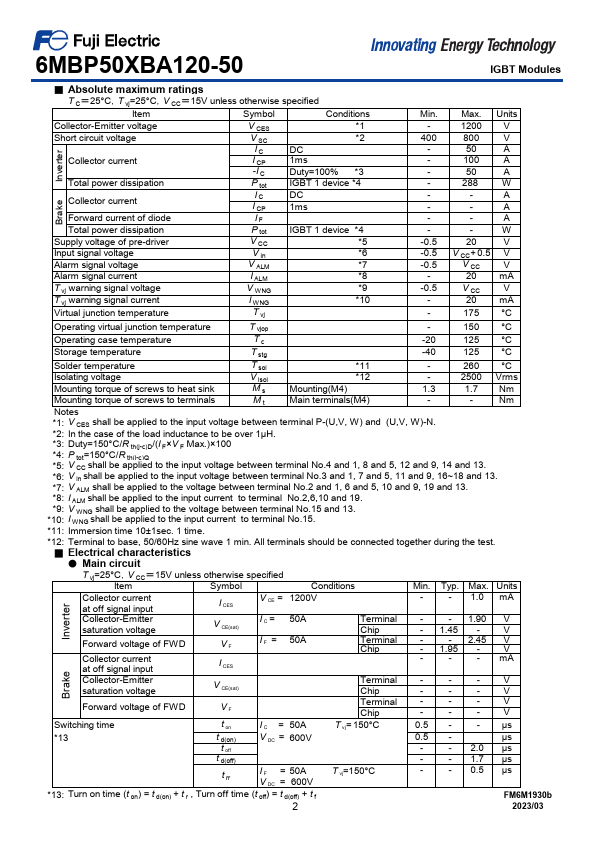

Absolute maximum ratings T C＝25°C，T vj=25°C，V CC＝15V unles.
