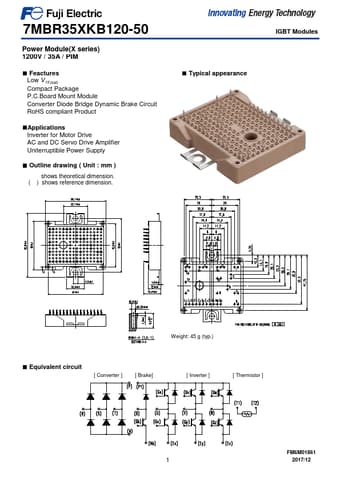

7MBR35XKB120-50 Power Module(X series) 1200V / 35A / PIM Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product Applications Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply Outline drawing ( Unit : mm ) shows theoretical dimension. ( ) shows reference dimension. Typical appearance IGBT Modules Weight: 45 g (typ.) Equivalent circuit [ Converter ] [ Br.
