7MBR35XMA120-50 Datasheet - Fuji Electric

7MBR35XMA120-50, IGBT

7MBR35XMA120-50 Power Module(X series) 1200V / 35A / PIM * Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge D.

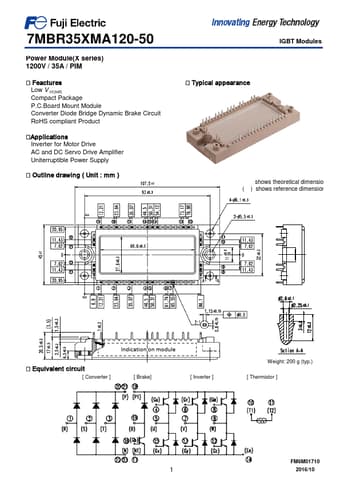

datasheet Preview Page 1 from Datasheet4u.com

7MBR35XMA120-50-FujiElectric.pdf

7MBR35XMA120-50 Datasheet Preview — Preview of 7MBR35XMA120-50 PDF

Datasheet Details

Part number:

7MBR35XMA120-50

Manufacturer:

Fuji Electric

File Size:

721.55 KB

Description:

IGBT

Applications

* Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply
* Outline drawing ( Unit : mm ) IGBT Modules
* Typical appearance shows theoretical dimensio ( ) shows reference dimension Indication on module
* Equivalent circuit [ Converter ] [ Brake] [ Inverter
