7MBR75XRE120-50 - IGBT

Fuji Electric

Datasheet Details

Part number	7MBR75XRE120-50
Manufacturer	Fuji Electric
File Size	905.58 KB
Description	IGBT
Datasheet	7MBR75XRE120-50 Datasheet
Additional preview pages of the 7MBR75XRE120-50 datasheet.

📁 Similar Datasheet

7MBR75U2B060-50 - Power Devices (IGBT) (ETC)
7MBR75VJC120-50 - IGBT (Fuji)
7MBR75VR120-50 - IGBT (Fuji)
7MBR100U2B060-50 - Power Devices (IGBT) (ETC)
7MBR100U4B120-50 - Power Devices (IGBT) (ETC)
7MBR15VJA120-53 - IGBT (Fuji)
7MBR25LC120 - Inverter Module (Fuji Semiconductors)
7MBR25UA120-50 - Power Devices (IGBT) (ETC)
7MBR30U2A060-50 - Power Devices (IGBT) (ETC)
7MBR30VKC060-50 - IGBT (Fuji)

Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

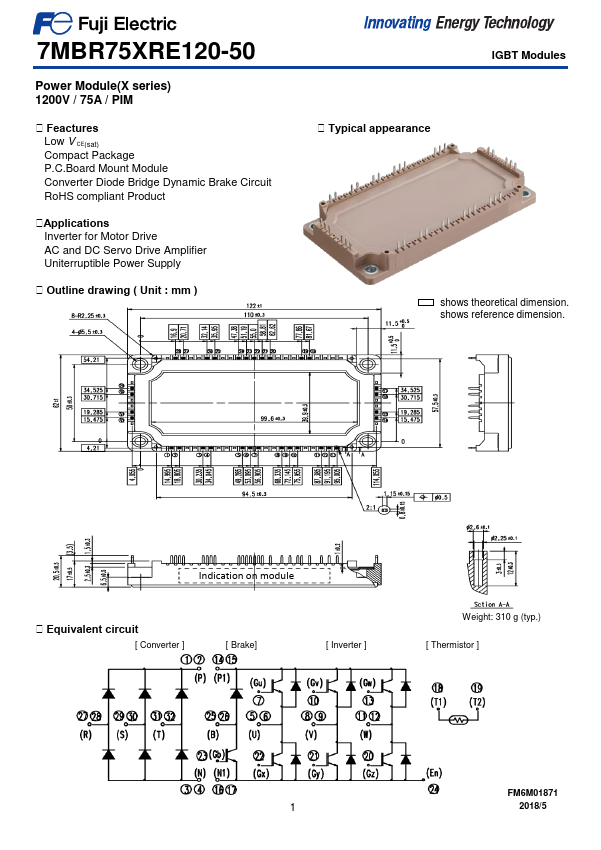

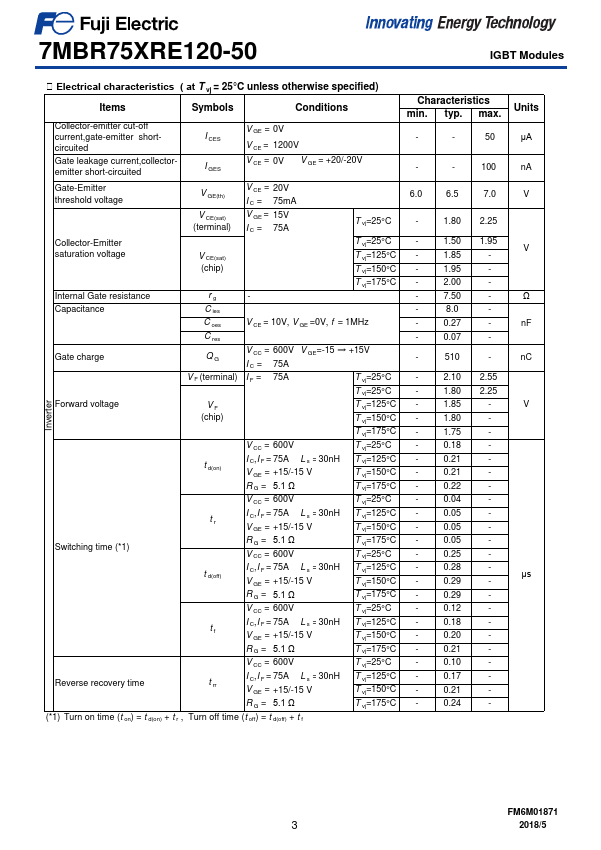

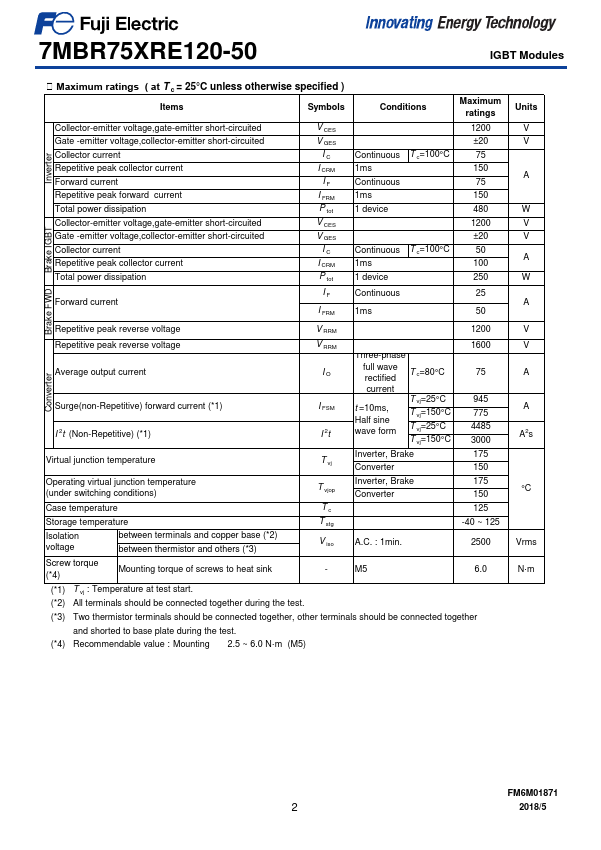

7MBR75XRE120-50 Power Module(X series) 1200V / 75A / PIM ◼ Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product ◼Applications Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply ◼ Outline drawing ( Unit : mm ) IGBT Modules ◼ Typical appearance shows theoretical dimension. shows reference dimension. Indication on module ◼ Equivalent circuit [ Converter ] [ Brake] [ Inverter ] Weight: 310 g (typ.
