7MBR75XYE120-50, IGBT

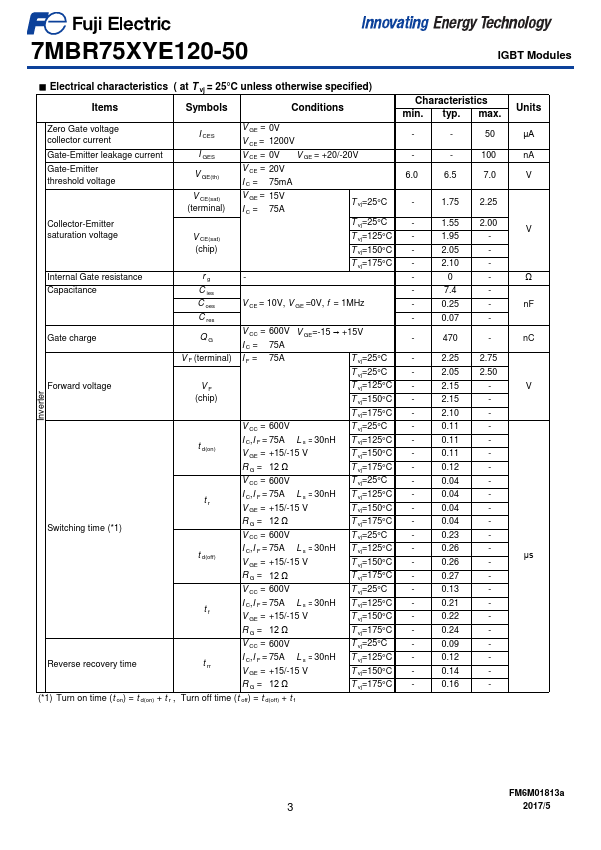

7MBR75XYE120-50 Power Module(X series) 1200V / 75A / PIM Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product Applications Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply Outline drawing ( Unit : mm ) Typical appearance IGBT Modules shows theoretical dimension.

( ) shows reference dimension.

Indication on module Equivalent circuit [ Converter ] [ B
