BA201 - FAST RECOVERY DIODE

Datasheet Summary

Features

Ultra small package, possible for 5mm pitch automatic insertion. High speed switching. High reliability. 25 MIN. 3.0 ±0.2 ø2.5MAX. ø0.56 +0.02 -0.01 25 MIN.

Fuji Electric

📥 Download Datasheet

Datasheet Details

Part number	BA201
Manufacturer	Fuji Electric
File Size	8.93 KB
Description	FAST RECOVERY DIODE
Datasheet	BA201 Datasheet
Additional preview pages of the BA201 datasheet.

📁 Similar Datasheet

BA201N - SMD Gas Discharge Tube (Bencent)
BA20880 - 2W Stereo Class-D Audio Power Amplifier (Biforst Technology)
BA2107G - Low Noise Operational Amplifiers (ROHM)
BA2115F - Low Noise Operational Amplifiers (Rohm)
BA2115FJ - Low Noise Operational Amplifiers (ROHM)
BA2115FVM - Low Noise Operational Amplifiers (ROHM)
BA217 - General Purpose Diodes (Fairchild Semiconductor)
BA218 - General Purpose Diodes (Fairchild Semiconductor)
BA220 - High-speed diode (NXP)
BA221 - High-speed diode (NXP)

Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

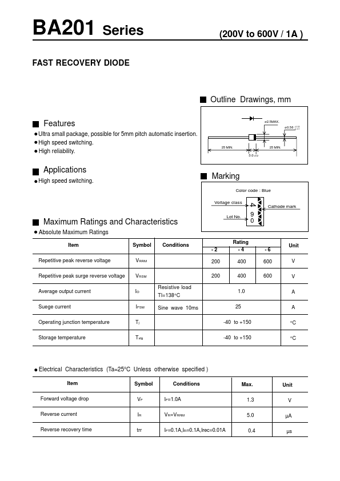

BA201 Series FAST RECOVERY DIODE (200V to 600V / 1A ) Outline Drawings, mm Features Ultra small package, possible for 5mm pitch automatic insertion. High speed switching. High reliability. 25 MIN. 3.0 ±0.2 ø2.5MAX. ø0.56 +0.02 -0.01 25 MIN. Applications High speed switching. Marking Color code : Blue Voitage class Lot No. 4 9 0 Cathode mark Maximum Ratings and Characteristics Absolute Maximum Ratings Item Repetitive peak reverse voltage Repetitive peak surge reverse voltage Average output current Suege current Operating junction temperature Storage temperature Symbol VRRM VRSM IO IFSM Tj Tstg Resistive load Tl=138°C Sine wave 10ms Conditions -2 200 200 Rating -4 400 400 1.
