BA2107G - Low Noise Operational Amplifiers

Datasheet Summary

Description

BA2107/BA2115 are single and dual operational amplifier with high gain and high slew rate(4v/µs).

BA2107/BA2115 has good performance of input referred noise voltage(7 nV/ Hz ) and total harmonic distortion(0.008%).

These are suitable for Audio applications.

Features

  • High voltage gain, low noise, low distortion.
  • Low input referred noise voltage.
  • Low distortion.
  • Wide operating supply voltage.
  • Internal ESD protection circuit.

📥 Download Datasheet

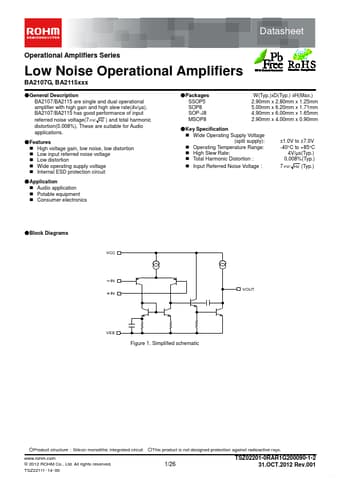

Datasheet preview – BA2107G

Datasheet Details

Part number BA2107G
Manufacturer ROHM
File Size 1.69 MB
Description Low Noise Operational Amplifiers
Datasheet download datasheet BA2107G Datasheet
Additional preview pages of the BA2107G datasheet.

📁 Similar Datasheet

  • BA217 - General Purpose Diodes (Fairchild Semiconductor)
  • BA218 - General Purpose Diodes (Fairchild Semiconductor)
  • BA201 - FAST RECOVERY DIODE (Fuji Electric)
  • BA201N - SMD Gas Discharge Tube (Bencent)
  • BA20880 - 2W Stereo Class-D Audio Power Amplifier (Biforst Technology)
  • BA220 - High-speed diode (NXP)
  • BA221 - High-speed diode (NXP)
  • BA231N - SMD Gas Discharge Tube (Bencent)
  • BA232 - Silicon Bridge Rectifier (Edal Industries)
  • BA243 - Silicon Planar Diode (TELEFUNKEN)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
Datasheet Operational Amplifiers Series Low Noise Operational Amplifiers BA2107G, BA2115xxx ●General Description BA2107/BA2115 are single and dual operational amplifier with high gain and high slew rate(4v/µs). BA2107/BA2115 has good performance of input referred noise voltage(7 nV/ Hz ) and total harmonic distortion(0.008%). These are suitable for Audio applications. ●Features  High voltage gain, low noise, low distortion  Low input referred noise voltage  Low distortion  Wide operating supply voltage  Internal ESD protection circuit ●Application  Audio application  Potable equipment  Consumer electronics ●Packages SSOP5 SOP8 SOP-J8 MSOP8 W(Typ.)xD(Typ.) xH(Max.) 2.90mm x 2.80mm x 1.25mm 5.00mm x 6.20mm x 1.71mm 4.90mm x 6.00mm x 1.65mm 2.90mm x 4.00mm x 0.
