* Insulated package by fully molding Low VF Super high speed switching High reliability by planer design JEDEC EIAJ 1. Gate 2. Drain 3. Source Connection diagram Applications High speed power switching 1 2 3 Maximum ratings and characteristics Absolute maximum ratings Item Repetitive peak reverse
ESAD92M-02 Datasheet (70.44 KB)
ESAD92M-02
Fuji Electric
70.44 KB
Low loss super high speed rectifier.

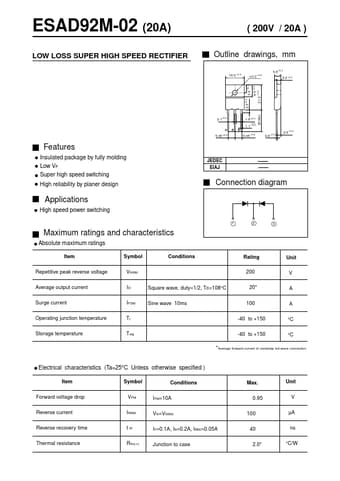

ESAD92M-02 (20A) LOW LOSS SUPER HIGH SPEED RECTIFIER 15.5 ±0.3 ( 200V / 20A ) Outline drawings, mm ø3.2 ±0.2 5.5 ±0.2 9.3 ±0.3 5.5 ±0.3 3.2 +0.3 .
