ESAD92M-03R

LOW LOSS SUPER HIGH SPEED RECTIFIER

ESAD92M-03R Features

* Insulated package by fully molding Low VF Super high speed switching High reliability by planer design JEDEC EIAJ 1. Gate 2. Drain 3. Source Connection diagram Applications High speed power switching 1 2 3 rch a nm Item Conditions Symbol Rating o Unit e . t n e ig ol es s Repetitive peak reverse

ESAD92M-03R Datasheet (123.51 KB)

Preview of ESAD92M-03R PDF

Datasheet Details

Part number:

ESAD92M-03R

Manufacturer:

Fuji Electric

File Size:

123.51 KB

Description:

Low loss super high speed rectifier.

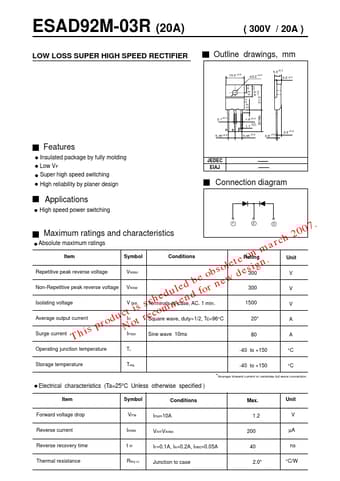

www.DataSheet4U.net ESAD92M-03R (20A) LOW LOSS SUPER HIGH SPEED RECTIFIER 15.5 ±0.3 ( 300V / 20A ) Outline drawings, mm ø3.2 ±0.2 5.5 ±0.2 9.3 ±0.3 .
