SC802-06 - SCHOTTKY BARRIER DIODE

Datasheet Summary

Features

  • Surface-mount device Low VF Super high speed switching High reliability by planer design Marking EC.

📥 Download Datasheet

Datasheet preview – SC802-06

Datasheet Details

Part number SC802-06
Manufacturer Fuji Electric
File Size 87.60 KB
Description SCHOTTKY BARRIER DIODE
Datasheet download datasheet SC802-06 Datasheet
Additional preview pages of the SC802-06 datasheet.

📁 Similar Datasheet

  • SC8002 - 3W audio amplifier (FUMAN ELECTRONICS)
  • SC8002B - 3W audio amplifier (FUMAN ELECTRONICS)
  • SC801 - Fully Integrated High Currnet Lithium-Ion Battery Charger System (Semtech Corporation)
  • SC803 - Fully Integrated High Current Lithium-Ion Battery Charger System (Semtech Corporation)
  • SC8035 - (SC80xx) Single Chip 8-Bit Microcontroller (NXP)
  • SC8039 - (SC80xx) Single Chip 8-Bit Microcontroller (NXP)
  • SC8040 - (SC80xx) Single Chip 8-Bit Microcontroller (NXP)
  • SC8048 - (SC80xx) Single Chip 8-Bit Microcontroller (NXP)
  • SC8049 - (SC80xx) Single Chip 8-Bit Microcontroller (NXP)
  • SC804A - Fully Integrated 4.4V Lithium-Ion Battery Charger System (Semtech)
Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

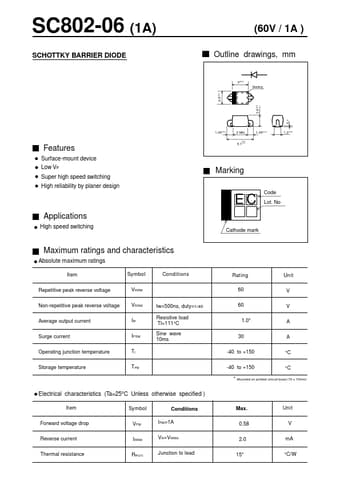

SC802-06 (1A) SCHOTTKY BARRIER DIODE 3±0.2 (60V / 1A ) Outline drawings, mm Marking 2.5±0.2 2.6±0.2 1.35±0.4 2 MIN. 5.1-0.1 +0.4 1.35±0.4 1.2±0.2 Features Surface-mount device Low VF Super high speed switching High reliability by planer design Marking EC Applications High speed switching Cathode mark Code Lot. No Maximum ratings and characteristics Absolute maximum ratings Item Repetitive peak reverse voltage Non-repetitive peak reverse voltage Average output current Surge current Operating junction temperature Storage temperature Symbol VRRM VRSM Io IFSM Tj Tstg tw=500ns, duty=1/40 Resistive load Tl=111°C Sine wave 10ms Conditions Rating 60 60 1.
