SC803 - Fully Integrated High Current Lithium-Ion Battery Charger System

Datasheet Summary

Description

The SC803 is a fully integrated, single cell, constant-current constant-voltage Lithium-Ion battery charger management system.

The SC803 has built in intelligence and extreme functionality.

Features

  • ‹ Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection ‹ Complete voltage ranges of 4.1V, 4.2V & adjustable ‹ Programmable precharge, fastcharge & termination current ‹ Battery voltage controlled to 1% accuracy ‹ Soft-start for step load and adaptor plug-in ‹ Up to 1.5A continuous charge current ‹ Charge current monitor output from microcontroller or ADC Interface The part also features current termination, ending the charge cycle when.

📥 Download Datasheet

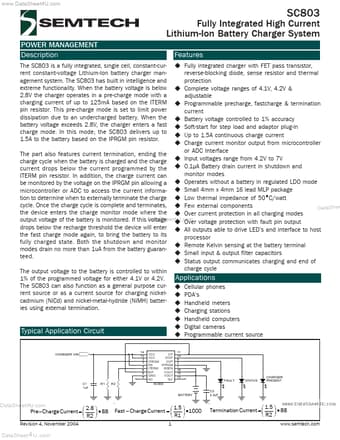

Datasheet preview – SC803

Datasheet Details

Part number SC803
Manufacturer Semtech Corporation
File Size 0.95 MB
Description Fully Integrated High Current Lithium-Ion Battery Charger System
Datasheet download datasheet SC803 Datasheet
Additional preview pages of the SC803 datasheet.
