YG801C09R, SCHOTTKY BARRIER DIODE

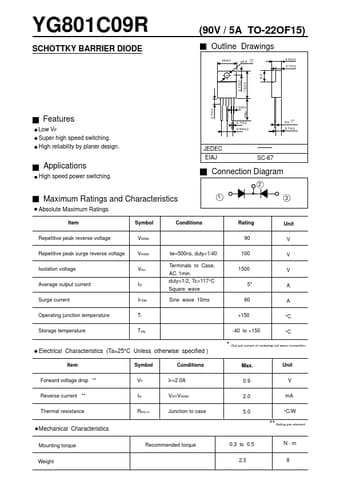

YG801C09R SCHOTTKY BARRIER DIODE (90V / 5A TO-22OF15) Outline Drawings 10±0.5 ø3.2 +0.2 -0.1 4.5±0.2 2.7±0.2 6.3 2.7±0.2 3.7±0.2 1.2±0.2 13Min Fe.

datasheet Preview Page 1 from Datasheet4u.com

YG801C09R_FujiElectric.pdf

YG801C09R Datasheet Preview — Preview of YG801C09R PDF

Datasheet Details

Part number:

YG801C09R

Manufacturer:

Fuji Electric

File Size:

51.11 KB

Description:

SCHOTTKY BARRIER DIODE

Applications

* High speed power switching. Connection Diagram 2 1 3 Maximum Ratings and Characteristics Absolute Maximum Ratings Item Repetitive peak reverse voltage Repetitive peak surge reverse voltage Isolation voltage Average output current Surge current Operating junction temperature Storage temperature Sym
