Part number:
YG865C10R
Manufacturer:
Fuji
File Size:
122.07 KB
Description:
Low ir schottky barrier diode.
YG865C10R Datasheet (122.07 KB)

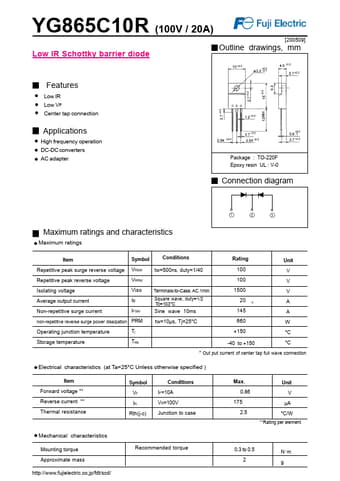

* Low IR Low VF Center tap connection [200509] Outline drawings, mm Applications High frequency operation DC-DC converters AC adapter Package : TO-220F Epoxy resin UL : V-0 Connection diagram 1 2 3 Maximum ratings and characteristics Maximum ratings Item Repetitive peak surge reverse voltage R
YG865C10R Datasheet (122.07 KB)
YG865C10R
Fuji
122.07 KB
Low ir schottky barrier diode.
