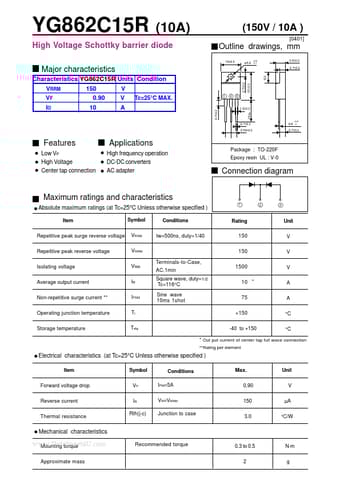

Part number: YG862C15R
Manufacturer: Fuji Electric
File Size: 86.90KB
Download: 📄 Datasheet
Description: High Voltage Schottky barrier diode
Low VF High Voltage Center tap connection
Applications
High frequency operation DC-DC converters AC adapter
Package : TO-220F Epoxy resin UL : V-0
Connection diagram
M.
High frequency operation DC-DC converters AC adapter
Package : TO-220F Epoxy resin UL : V-0
Connection diagram
Maximum.
