39A126

MB39A126

39A126 Features

* High efficiency : 97% (MAX) Built-in two constant current control circuits Analog control of the charging current value (+INE1, +INE2 terminal) Built-in AC adapter voltage detection function (ACOK, XACOK terminal) (Continued)

* PACKAGES 24-pin plastic SSO

39A126 General Description

MB39A125/126 is a DC/DC converter IC for charging Li-ion battery, which is suitable for down-conversion, and uses pulse width modulation (PWM) for controlling the output voltage and current independently. This IC integrates the build-in comparator for the voltage detection of the AC adapter, and sel.

39A126 Datasheet (536.82 KB)

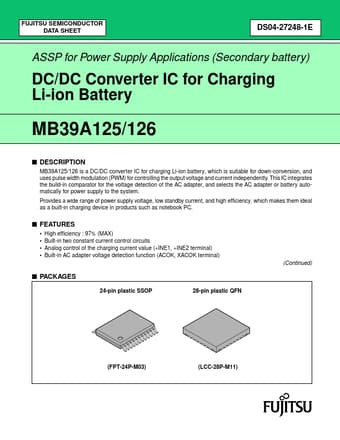

Preview of 39A126 PDF

Datasheet Details

Part number:

39A126

Manufacturer:

Fujitsu Component Limited

File Size:

536.82 KB

Description:

mb39a126.
www.DataSheet.co.kr FUJITSU SEMICONDUCTOR DATA SHEET DS04-27248-1E ASSP for Power Supply Applications (Secondary battery) DC/DC Converter IC for C.
