39A108

MB39A108

39A108 Features

* Supports for down-conversion with synchronous rectification (CH1)

* Supports for down-conversion and up/down Zeta conversion (CH2, CH3)

* Supports for up-conversion and up/down Sepic conversion (CH4, CH5)

* Low voltage start-up (CH4, CH5) : 1.7 V

* Power sup

39A108 General Description

The MB39A108 is 5-channel DC/DC converter IC using pulse width modulation (PWM), and is suitable for up conversion, down conversion, and up/down conversion. The MB39A108 is built in 5 channels into TSSOP-38P/ BCC-40P package and operates at 2 MHz maximum. Each channel can be controlled with soft-sta.

39A108 Datasheet (599.82 KB)

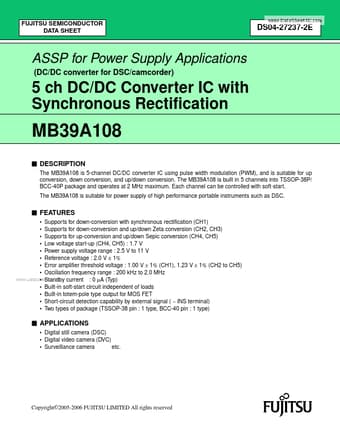

Preview of 39A108 PDF

Datasheet Details

Part number:

39A108

Manufacturer:

Fujitsu Media Devices

File Size:

599.82 KB

Description:

Mb39a108.
FUJITSU SEMICONDUCTOR DATA SHEET DS04-27237-2E ASSP for Power Supply Applications (DC/DC converter for DSC/camcorder) 5 ch DC/DC Converter IC with .
