MB39C006A Datasheet - Fujitsu Component

1 ch DC/DC Converter IC Built-in Switching FET & POWERGOOD function

MB39C006A Features

* High efficiency : 96% (Max) Low current consumption : 30 μA (at PFM) Output current (DC/DC) : 800 mA (Max) Input voltage range : 2.5 V to 5.5 V Operating freque

MB39C006A General Description

The MB39C006A is a current mode type 1-channel DC/DC converter IC built-in switching FET, synchronous rectification, and down conversion support. The device is integrated with a switching FET, oscillator, error amplifier, PFM/PWM control circuit, reference voltage source, and POWERGOOD circuit. Exte.

MB39C006A Datasheet (744.08 KB)

MB39C006A Datasheet Preview — Preview of MB39C006A PDF

Datasheet Details

Part number:

MB39C006A

Manufacturer:

Fujitsu Component

File Size:

744.08 KB

Description:

1 ch dc/dc converter ic built-in switching fet & powergood function.

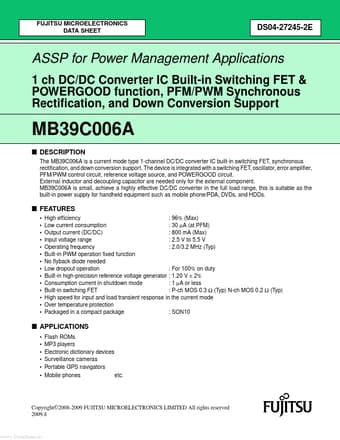

FUJITSU MICROELECTRONICS DATA SHEET DS04-27245-2E ASSP for Power Management Applications 1 ch DC/DC Converter IC Built-in Switching FET & POWERGOOD .
