MB39C015 - 2 ch DC/DC Converter IC Built-in Switching FET

Product Overview

Fujitsu Component

Part number	MB39C015
Manufacturer	Fujitsu Component
File Size	2.05 MB
Description	2 ch DC/DC Converter IC Built-in Switching FET
Datasheet	MB39C015 Datasheet

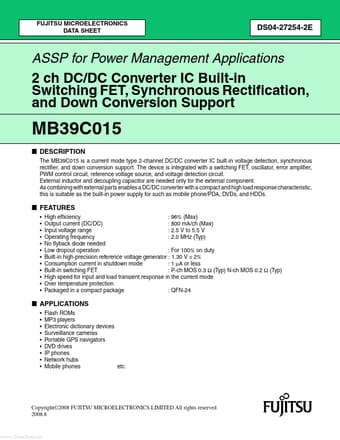

Additional preview pages of the MB39C015 datasheet.

The MB39C015 is a current mode type 2-channel DC/DC converter IC built-in voltage detection, synchronous rectifier, and down conversion support.

S.
High efficiency : 96% (Max) Output current (DC/DC) : 800 mA/ch (Max) Input voltage range : 2.5 V to 5.5 V Operating frequency : 2.0 MHz (Typ) No flyback diode needed Low dropout operation : For 100% on duty Built-in high-precision reference voltage generator : 1.30 V ± 2% Consumption current in shutdown mode : 1 µA or less Built-in switching FET : P-ch MOS 0.3 Ω (Typ) N-ch MO.
