FAR-F5CH

Piezoelectric SAW BPF (700 to 1000 MHz)

FAR-F5CH Features

* Low insertion loss and high attenuation High handling power (0.2 Watt) Ultra compact and light package (3.8 mm) External matching circuits are not required. Surface mount package (SMT) Wide variety of standard devices for worldwide mobile c

FAR-F5CH General Description

The F5CH series of SAW bandpass filters apply to the frequency range 700 to 1000 MHz. The SAW filters are fabricated on a lithium tantalate (LiTaO3) substrate, producing filters with a wide frequency bandwidth, low insertion loss in passband and superior stability due to the high electromechanical c.

FAR-F5CH Datasheet (441.30 KB)

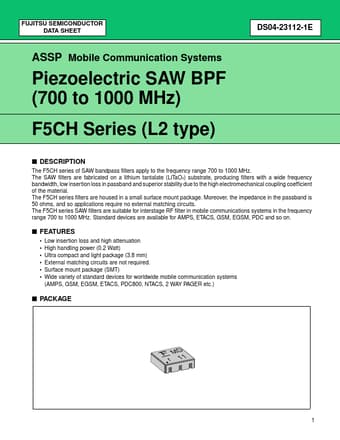

Preview of FAR-F5CH PDF

Datasheet Details

Part number:

FAR-F5CH

Manufacturer:

Fujitsu Media Devices Limited

File Size:

441.30 KB

Description:

Piezoelectric saw bpf (700 to 1000 mhz).
FUJITSU SEMICONDUCTOR DATA SHEET DS04-23112-1E ASSP Mobile Communication Systems Piezoelectric SAW BPF (700 to 1000 MHz) F5CH Series (L2 type) s DE.
