FAR-F5CM Datasheet - Fujitsu Media Devices Limited

FAR-F5CM SAW Filter (700 to 1000 MHz)

The F5CM series of SAW filters have balanced in/unbalanced out or unbalanced in/balanced out of I/O ports. Therefore these filters are suitable for the design using balanced type of IC. By using these filters, any transforming devises, such as balun is not required. The F5CM series filters apply to .

FAR-F5CM Features

* Balanced/unbalanced I/O ports Ultra compact and light package (3.0 mm × 3.0 mm package) Any external matching network is not required Excellent stopband attenuation Small inband ripple Surface mount package (SMT) s PACKAGE F5CM Series (B2

FAR-F5CM_FujitsuMediaDevicesLimited.pdf

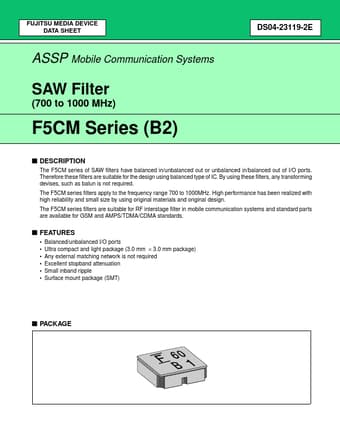

Preview of FAR-F5CM PDF
FAR-F5CM Datasheet Preview Page 2 FAR-F5CM Datasheet Preview Page 3

Datasheet Details

Part number:

FAR-F5CM

Manufacturer:

Fujitsu Media Devices Limited

File Size:

128.56 KB

Description:

Saw filter (700 to 1000 mhz).
