MB86613

IEEE 1394 Open HCI Controller

MB86613 Features

* 1.

* 1394 serial bus controller Unit Compliant with IEEE 1394-1995 Standard PHYsical and LINK layer modules integrated on a single chip Three internal ports Transfer rates of S100, S200, and S400 suppo

MB86613 General Description

The MB86613 a high-performance, host-bus (PCI) and serial-bus (1394) controller chip for controlling transfer between the PCI and 1394 buses. This chip conforms to the PCI Standard Version 2.1 for PCI control, the IEEE 1394-1995 Standard for 1394 control, and the Open HCI Standard Version 1.0 for PC.

MB86613 Datasheet (474.00 KB)

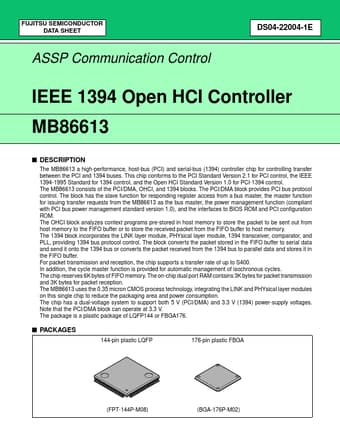

Preview of MB86613 PDF

Datasheet Details

Part number:

MB86613

Manufacturer:

Fujitsu Media Devices

File Size:

474.00 KB

Description:

Ieee 1394 open hci controller.
