MB86613S

IEEE1394 Open HCI Controller

MB86613S Features

* 1) 1394 Serial Bus Controller Block: Compliant with IEEE1394- 1995 and P1394a draft2.0 Integrates PHY and LINK layers into single- chip. 1394 port number : 1 port Transfer Data Rate : S100, S200, and S400 On- chip PLL : 400MHz for PHY and 50MHz for Link core. Cycle- Master Function On- chip Bus Mana

MB86613S General Description

1.5.1. PCI Block PCI block consists of the following components : (1) PCI Interface: 32- bit, 33MHz, PCI local bus interface compliant with PCI spec revision 2.2. This is the 5V/3.3V operable local bus interface with host side. (2) DMAC DMA bus master which is associated with the PCI interface. (3) .

MB86613S Datasheet (766.17 KB)

Preview of MB86613S PDF

Datasheet Details

Part number:

MB86613S

Manufacturer:

Fujitsu Media Devices

File Size:

766.17 KB

Description:

Ieee1394 open hci controller.

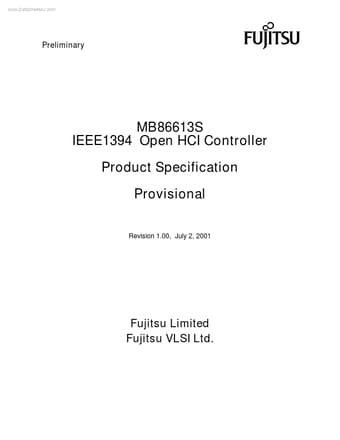

www.DataSheet4U.com Preliminary MB86613S IEEE1394 Open HCI Controller Product Specification Provisional Revision 1.00, July 2, 2001 Fujitsu Limited.
