MB95F282H, MB95F262H - 8-bit Microcontrollers

Fujitsu Media Devices

📥 Download Datasheet

MB95F282H Datasheet Preview — This datasheet PDF includes multiple part numbers: MB95F282H, MB95F262H. Please refer to the document for exact specifications by model.

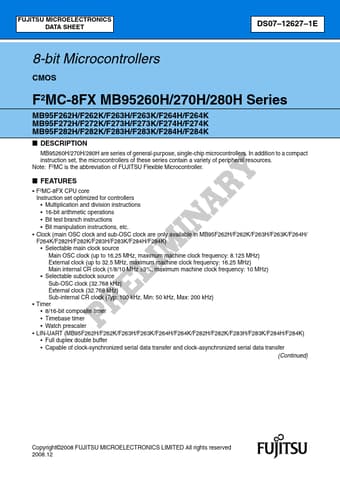

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MB95F282H, MB95F262H
Manufacturer	Fuji ↗tsu Media Devices
File Size	2.41 MB
Description	8-bit Microcontrollers
Datasheet	MB95F262H-FujitsuMediaDevices.pdf
Note	This datasheet PDF includes multiple part numbers: MB95F282H, MB95F262H. Please refer to the document for exact specifications by model.

MB95F282H Product details

Description

MB95260H/270H/280H are series of general-purpose, single-chip microcontrollers.

Features

S.
F2MC-8FX CPU core Instruction set optimized for controllers.
Multiplication and division instructions.
16-bit arithmetic operations.
Bit test branch instructions.
Bit manipulation instructions, etc.
Clock (main OSC clock and sub-OSC clock are only available in MB95F262H/F262K/F263H/F263K/F264H/ F264K/F282H/F282K/F283H/F283K/F284H/F284K).
Selectable main clock source Main OSC clock (up to 16.25 MHz, maximum machine clock frequency.
