BA4.5WK, BA24 - MINIATURE RELAY

BA4.5WK Description

MINIATURE RELAY 2 POLES *1 to 2 A (FOR SIGNAL SWITCHING) BA SERIES s .

BA4.5WK Features

* q q q q q q q q q Slim type relay for high density mounting CSA recognized Conforms to IEC60950, Bellcore specification and FCC Part 68
* Clearance more than 2.0 mm between coil and contacts
* Creepage more than 2.5 mm between coil and contacts
* Dielectric strength 2,000 VAC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BA4.5WK, BA24. Please refer to the document for exact specifications by model.

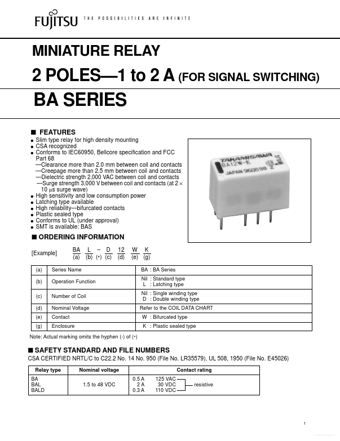

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA4.5WK, BA24
Manufacturer
Fujitsu
File Size
142.23 KB
Datasheet
BA24-WK.pdf
Description
MINIATURE RELAY
Note
This datasheet PDF includes multiple part numbers: BA4.5WK, BA24.
Please refer to the document for exact specifications by model.
