BA401N-D

Gas Discharge Tube

BA401N-D Features

* Small Size Design EIA 1812 4.5×3.2×2.7mm Current Handling Capability 1,000A @ 8/20μs Low Capacitance and Insertion Loss Fast Response and Long Service Life Reliable to Protect Electrostatic Surge Moisture sensitivity level:Level 1 Application information xDSL ` Exterior BA401N-D Order Code: BA401N

BA401N-D General Description

Compliance with 2011/65/EU Compliance with IEC61249-2-21:2003 Mean lead free Schematic Symbol 1 2 Electrical Parameter DC Breakdown Voltage 1)2) Impulse Spark-over Voltage Impulse Discharge Current 3) Arc Voltage Insulation Resistance Capacitance at 1 MHz Weight Operating And Storage Temperature.

BA401N-D Datasheet (236.09 KB)

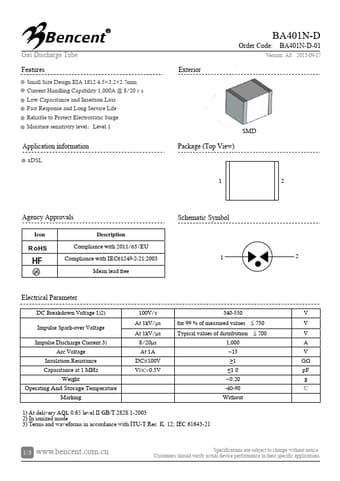

Preview of BA401N-D PDF

Datasheet Details

Part number:

BA401N-D

Manufacturer:

Bencent

File Size:

236.09 KB

Description:

Gas discharge tube.
