BAL-24W-K - MINIATURE RELAY

This page provides the datasheet information for the BAL-24W-K, a member of the BA24 MINIATURE RELAY family.

Datasheet Summary

Features

  • q q q q q q q q q Slim type relay for high density mounting CSA recognized Conforms to IEC60950, Bellcore specification and FCC Part 68.
  • Clearance more than 2.0 mm between coil and contacts.
  • Creepage more than 2.5 mm between coil and contacts.
  • Dielectric strength 2,000 VAC between coil and contacts.
  • Surge strength 3,000 V between coil and contacts (at 2 × 10 µs surge wave) High sensitivity and low consumption power Latching type available High reliability.

📥 Download Datasheet

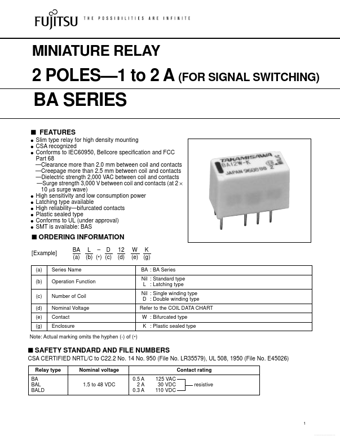

Datasheet preview – BAL-24W-K

Datasheet Details

Part number BAL-24W-K
Manufacturer Fujitsu
File Size 142.23 KB
Description MINIATURE RELAY
Datasheet download datasheet BAL-24W-K Datasheet
