MBL8287

Bipolar Octal Bus Transceiver

MBL8287 General Description

Symbol ~pe T OE 0 Ao-A7 1/0 Bo-B7 ~MBL8286) O-B7 1/0 CMBL8287) Name and Function li'ansmlt: T is an input control signal used to control the direction of the transceivf!rs. When HIGH, it configures the transceiver's 80-B7 as outputs with Ao-A7 as inputs. T LOW configures Ao-A7 as the outpu.

MBL8287 Datasheet (231.17 KB)

Preview of MBL8287 PDF

Datasheet Details

Part number:

MBL8287

Manufacturer:

Fujitsu

File Size:

231.17 KB

Description:

Bipolar octal bus transceiver.
Advanced Products

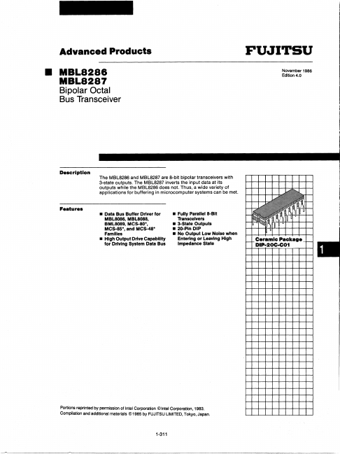

* MBL8286 MBL8287 Bipolar Octal Bus Transceiver FUJITSU November 1986 Edition 4.0 De.criptlon Feeture. The MBl8286 and MB.
