VC-2R8A24-1202, VC-2R8A24-0897 VCO

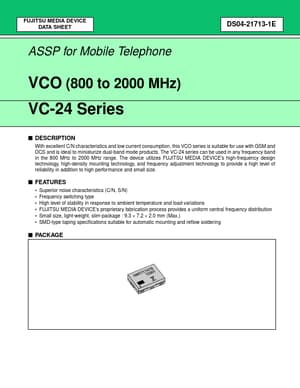

📥 Download Datasheet  Datasheet Preview Page 1

Description

FUJITSU MEDIA DEVICE DATA SHEET ASSP for Mobile Telephone DS04-21713-1E VCO (800 to 2000 MHz) VC-24 Series s .
With excellent C/N characteristics and low current consumption, this VCO series is suitable for use with GSM and DCS and is ideal to miniaturize dual-.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VC-2R8A24-1202, VC-2R8A24-0897. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
VC-2R8A24-1202, VC-2R8A24-0897
Manufacturer
Fujitsu
File Size
166.09 KB
Datasheet
VC-2R8A24-0897-Fujitsu.pdf
Description
VCO
Note
This datasheet PDF includes multiple part numbers: VC-2R8A24-1202, VC-2R8A24-0897.
Please refer to the document for exact specifications by model.

Features

* Superior noise characteristics (C/N, S/N)
* Frequency switching type
* High level of stability in response to ambient temperature and load variations
* FUJITSU MEDIA DEVICE’s proprietary fabrication process provides a uniform central frequency distribution
