VC-2R8A30-1815, VC-2R8A30-1591 VCO

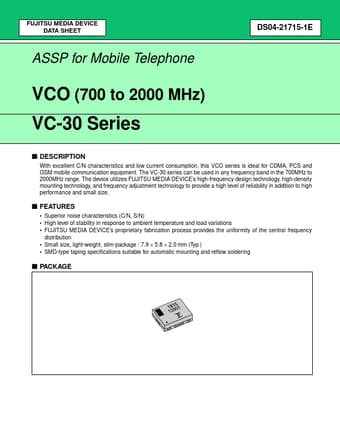

📥 Download Datasheet  Datasheet Preview Page 1

Description

FUJITSU MEDIA DEVICE DATA SHEET ASSP for Mobile Telephone DS04-21715-1E VCO (700 to 2000 MHz) VC-30 Series s .
With excellent C/N characteristics and low current consumption, this VCO series is ideal for CDMA, PCS and GSM mobile communication equipment.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VC-2R8A30-1815, VC-2R8A30-1591. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
VC-2R8A30-1815, VC-2R8A30-1591
Manufacturer
Fujitsu
File Size
59.60 KB
Datasheet
VC-2R8A30-1591-Fujitsu.pdf
Description
VCO
Note
This datasheet PDF includes multiple part numbers: VC-2R8A30-1815, VC-2R8A30-1591.
Please refer to the document for exact specifications by model.

Features

* Superior noise characteristics (C/N, S/N)
* High level of stability in response to ambient temperature and load variations
* FUJITSU MEDIA DEVICE’s proprietary fabrication process provides the uniformity of the central frequency distribution
* Small size, light-weig
