28BYJ48-12-300-01 Datasheet - Fulling Motor

28BYJ48-12-300-01 Geared Step Motor

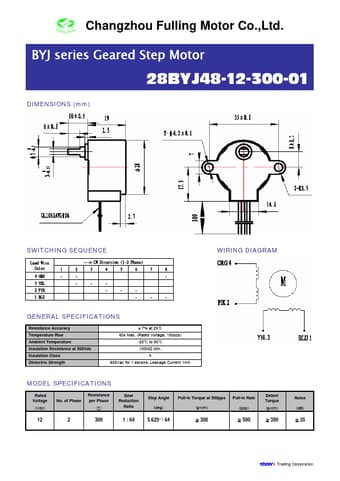

Changzhou Fulling Motor Co.,Ltd. BYJ series Geared Step Motor 28BYJ48-12-300-01 DIMENSIONS (mm) SWITCHING SEQUENCE Lead Wire Color 4 ORG 3 YEL 2 PIK 1 BLU 1 - -> CW Direction (1-2 Phase) 23456 - - 7 - 8 - - GENERAL SPECIFICATIONS Resistance Accuracy Temperature Rise Ambient Temperature Insulation Resistance at 500Vdc Insulation Class Dielectric Strength ± 7% at 25℃ 60k Max. (Rated Voltage, 100pcs) -20℃ to 50℃ 100MΩ Min. A 600Vac for 1 second, Leakage Current 1.

28BYJ48-12-300-01-FullingMotor.pdf

28BYJ48-12-300-01 Datasheet Preview — Preview of 28BYJ48-12-300-01 PDF

Datasheet Details

Part number:

28BYJ48-12-300-01

Manufacturer:

Fulling Motor

File Size:

159.72 KB

Description:

Geared step motor.
