28BYGH105-01, 28BYGH102-01 Datasheet - HeTai

28BYGH105-01 HYBRID STEPPING MOTOR

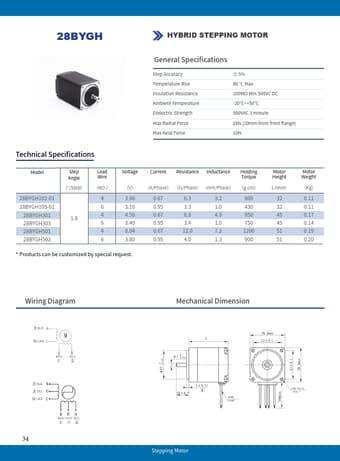

28BYGH HYBRID STEPPING MOTOR General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 28N (20mm from front flange) 10N Technical Specifications Model 28BYGH102-01 28BYGH105-01 28BYGH301 28BYGH303 28BYGH501 28BYGH502 Step Angle （°/Step） 1.8 Lead Wire （NO.） 4 6 4 6 4 6 Voltage Current Resistance Inductance Holding Torque （V）（A/Phase） .

28BYGH102-01-HeTai.pdf

28BYGH105-01 Datasheet Preview — This datasheet PDF includes multiple part numbers: 28BYGH105-01, 28BYGH102-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

28BYGH105-01, 28BYGH102-01

Manufacturer:

HeTai

File Size:

1.54 MB

Description:

Hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: 28BYGH105-01, 28BYGH102-01.
Please refer to the document for exact specifications by model.
