GS8052N, GS8051 250MHZ CMOS Rail-to-Rail Output Opamps

GS8052N Description

GS8051/8052/8054/8051N/8052N 250MHZ CMOS Rail-to-Rail Output Opamps .
The GS8051/1N(single), GS8052/2N(dual), GS8054(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost.

GS8052N Features

* Single-Supply Operation from +2.5V ~ +5.5V
* Rail-to-Rail Output
* -3dB Bandwidth(G=+1): 250MHz (Typ. )
* Low Input Bias Current: 1pA (Typ. )
* Quiescent Current: 2.8mA/Amplifier (Typ. )
* Operating Temperature: -40°C ~ +125°C
* Small Package:

GS8052N Applications

* where size and power are critical. All are specified over ℃ ℃ the extended -40 to +125 temperature range. Applications
* Imaging
* Photodiode Preamp
* DVD/CD
* Filters
* Professional Video and Cameras
* Hand Sets
* Base Stations
* A-t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS8052N, GS8051. Please refer to the document for exact specifications by model.

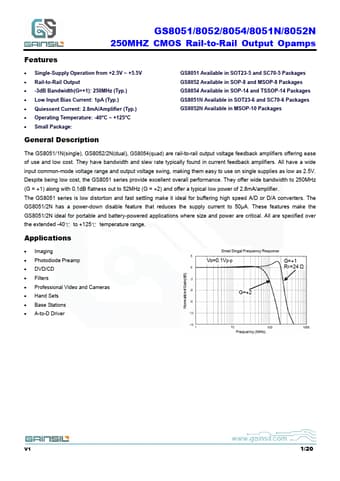

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS8052N, GS8051
Manufacturer
GAINSIL
File Size
1.00 MB
Datasheet
GS8051-GAINSIL.pdf
Description
250MHZ CMOS Rail-to-Rail Output Opamps
Note
This datasheet PDF includes multiple part numbers: GS8052N, GS8051.
Please refer to the document for exact specifications by model.
