GS809C - Microprocessor Reset Monitors

Vishay Siliconix

The GS809C by Vishay Siliconix is a Microprocessor Reset Monitors. Below is the official datasheet preview.

📥 Download Datasheet

GS809C Microprocessor Reset Monitors by Vishay Siliconix - Datasheet Preview — Official preview page of the **GS809C** Microprocessor Reset Monitors datasheet (Vishay Siliconix).

Datasheet Details

Part number	GS809C
Manufacturer	Vishay Siliconix
File Size	45.02 KB
Description	Microprocessor Reset Monitors
Datasheet	GS809C_VishaySiliconix.pdf

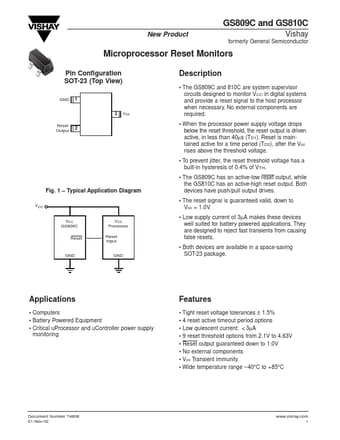

Additional preview pages of the GS809C datasheet.

GS809C Product details

Description

The GS809C and 810C are system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. When the processor power supply voltage drops below the reset threshold, the reset output is driven active, in less than 40µs (TD1). To prevent jitter, the reset threshold v

Features

Tight reset voltage tolerances ± 1.5%.
4 reset active timeout period options.
Low quiescent current: < 3µA.
9 reset threshold options from 2.1V to 4.63V.
Reset output guaranteed down to 1.0V.
No external components.
Vcc Transient immunity.
Wide temperature range.
40°C to +85°C Document Number 74808 01-Nov-02 www. vishay. com 1 GS809C and GS810C Vishay formerly General Semiconductor Ordering Information Reset Acti.
