GS8092 - 350MHZ CMOS Rail-to-Rail Output Opamps

Product Overview

📥 Download Datasheet

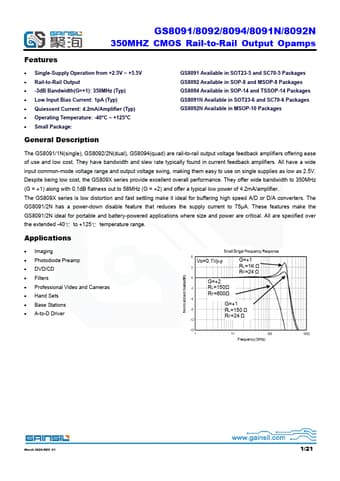

GS8092 350MHZ CMOS Rail-to-Rail Output Opamps by GAINSIL - Datasheet Preview — Datasheet preview – GS8092

Datasheet Details

Part number	GS8092
Manufacturer	GAINSIL
File Size	1.55 MB
Description	350MHZ CMOS Rail-to-Rail Output Opamps
Datasheet	GS8092 Datasheet
Note	This datasheet PDF includes multiple part numbers: GS8092, GS8091. Please refer to the document for exact specifications by model.
Additional preview pages of the GS8092 datasheet.

Product details

Description

The GS8091/1N(single), GS8092/2N(dual), GS8094(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost.

Features

Single-Supply Operation from +2.5V ~ +5.5V.
Rail-to-Rail Output.
-3dB Bandwidth(G=+1): 350MHz (Typ).
Low Input Bias Current: 1pA (Typ).
Quiescent Current: 4.2mA/Amplifier (Typ).
Operating Temperature: -40°C ~ +125°C.
Small Package: GS8091 Available in SOT23-5 and SC70-5 Packages GS8092 Available in SOP-8 and MSOP-8 Packages GS8094 Available in SOP-14 and TSSOP-14 Packages GS8091N Available in SOT23-6 and SC70-6 Packages GS8092N Av.
