GS8632 Datasheet PDF - GAINSIL 6-MHZ CMOS Rail-to-Rail I/O Opamps Specs

GS8632 - 6-MHZ CMOS Rail-to-Rail I/O Opamps

This page provides the datasheet information for the GS8632, a member of the GS8631 6-MHZ CMOS Rail-to-Rail I/O Opamps family.

Datasheet Summary

Description

amplifier at 5V.

The GS8631N has a power-down disable feature that reduces the supply current to 90nA.

Features

Single-Supply Operation from +2.1V ~ +5.5V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product: 6MHz (Typ. ).
Low Input Bias Current: 1pA (Typ. ).
Low Offset Voltage: 3.5mV (Max. ).
Quiescent Current: 470µA per Amplifier (Typ. ).
Operating Temperature: -40°C ~ +125°C.
Small Package: GS8631 Available in SOT23-5, SOP-8 and SC70-5 Packages GS8632 Available in SOP-8 and MSOP-8 Packages GS8634 Available in SOP-14 and TSSOP-14 Pac.

Datasheet Details

Part number	GS8632
Manufacturer	GAINSIL
File Size	603.78 KB
Description	6-MHZ CMOS Rail-to-Rail I/O Opamps
Datasheet	GS8632 Datasheet
Additional preview pages of the GS8632 datasheet.

📁 Similar Datasheet

GS864018RT - Rad-Tolerant SRAM (GSI Technology)

GS864018T-167 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864018T-200 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864018T-250 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864018T-300 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864018T-xxxV - 72Mb Sync Burst SRAMs (GSI Technology)

GS864032T-167 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864032T-200 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864032T-250 - 72Mb Sync Burst SRAMs (GSI Technology)

GS864032T-300 - 72Mb Sync Burst SRAMs (GSI Technology)

Full PDF Text Transcription

Click to expand full text

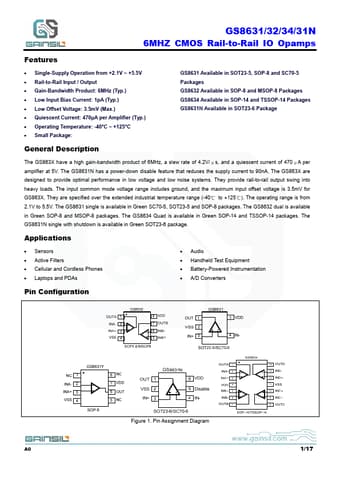

GS8631/32/34/31N 6MHZ CMOS Rail-to-Rail IO Opamps Features • Single-Supply Operation from +2.1V ~ +5.5V • Rail-to-Rail Input / Output • Gain-Bandwidth Product: 6MHz (Typ.) • Low Input Bias Current: 1pA (Typ.) • Low Offset Voltage: 3.5mV (Max.) • Quiescent Current: 470µA per Amplifier (Typ.) • Operating Temperature: -40°C ~ +125°C • Small Package: GS8631 Available in SOT23-5, SOP-8 and SC70-5 Packages GS8632 Available in SOP-8 and MSOP-8 Packages GS8634 Available in SOP-14 and TSSOP-14 Packages GS8631N Available in SOT23-6 Package General Description μ μ The GS863X have a high gain-bandwidth product of 6MHz, a slew rate of 4.2V/ s, and a quiescent current of 470 A per amplifier at 5V. The GS8631N has a power-down disable feature that reduces the supply current to 90nA.
