LM358H - 1-MHZ High Voltage Bipolar Opamp

This page provides the datasheet information for the LM358H, a member of the LM321H 1-MHZ High Voltage Bipolar Opamp family.

Datasheet Summary

Description

Large Outpu Voltage Swing:0V to Vcc-1.5V Operating Temperature: -25°C ~ +85°C Small Package: LM321H Available in SOT23-5 Package LM358H Available in SOP-8 and MSOP-8 Packages LM324H Available in SOP-14 Package The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz

Features

  • Single-Supply Operation from +3V ~ +36V.
  • Dual-Supply Operation from ±1.5V ~ ±18V.
  • Gain-Bandwidth Product: 1MHz (Typ).
  • Low Input Bias Current: 20nA (Typ).
  • Low Offset Voltage: 5mV (Max).
  • Quiescent Current: 250μA per Amplifier (Typ).
  • Input Common Mode Voltage Range Includes Ground General.

📥 Download Datasheet

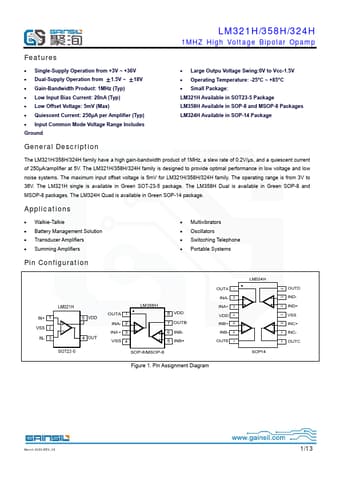

Datasheet preview – LM358H

Datasheet Details

Part number LM358H
Manufacturer GAINSIL
File Size 528.20 KB
Description 1-MHZ High Voltage Bipolar Opamp
Datasheet download datasheet LM358H Datasheet
Additional preview pages of the LM358H datasheet.

📁 Similar Datasheet

  • LM358H - Low Power Dual Operational Amplifiers (National Semiconductor)
  • LM358H - Dual-Operational Amplifiers (Texas Instruments)
  • LM358 - Low-power dual operational amplifiers (STMicroelectronics)
  • LM358 - Dual Rail-to-Rail Output Operational Amplifier (SG Micro)
  • LM358 - Industry-Standard Dual Operational Amplifiers (Texas Instruments)
  • LM358 - LOW POWER DUAL OPERATIONAL AMPLIFIER (Diodes)
  • LM358 - DUAL OPERATIONAL AMPLIFIER (UTC)
  • LM358 - Low Power Dual Operational Amplifiers (National Semiconductor)
  • LM358 - Dual Operational Amplifier (Fairchild Semiconductor)
  • LM358 - Single Supply Dual Operational Amplifiers (ON Semiconductor)
Other Datasheets by GAINSIL
  • LM321H - 1-MHZ High Voltage Bipolar Opamp
  • LM324H - 1-MHZ High Voltage Bipolar Opamp

Full PDF Text Transcription

Click to expand full text
LM321H/358H/324H 1MHZ High Voltage Bipolar Opamp Features  Single-Supply Operation from +3V ~ +36V  Dual-Supply Operation from ±1.5V ~ ±18V  Gain-Bandwidth Product: 1MHz (Typ)  Low Input Bias Current: 20nA (Typ)  Low Offset Voltage: 5mV (Max)  Quiescent Current: 250μA per Amplifier (Typ)  Input Common Mode Voltage Range Includes Ground General Description  Large Outpu Voltage Swing:0V to Vcc-1.5V  Operating Temperature: -25°C ~ +85°C  Small Package: LM321H Available in SOT23-5 Package LM358H Available in SOP-8 and MSOP-8 Packages LM324H Available in SOP-14 Package The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 250μA/amplifier at 5V.
