LM321H - 1-MHZ High Voltage Bipolar Opamp

Datasheet Summary

Description

Large Outpu Voltage Swing:0V to Vcc-1.5V Operating Temperature: -25°C ~ +85°C Small Package: LM321H Available in SOT23-5 Package LM358H Available in SOP-8 and MSOP-8 Packages LM324H Available in SOP-14 Package The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz

Features

  • Single-Supply Operation from +3V ~ +36V.
  • Dual-Supply Operation from ±1.5V ~ ±18V.
  • Gain-Bandwidth Product: 1MHz (Typ).
  • Low Input Bias Current: 20nA (Typ).
  • Low Offset Voltage: 5mV (Max).
  • Quiescent Current: 250μA per Amplifier (Typ).
  • Input Common Mode Voltage Range Includes Ground General.

📥 Download Datasheet

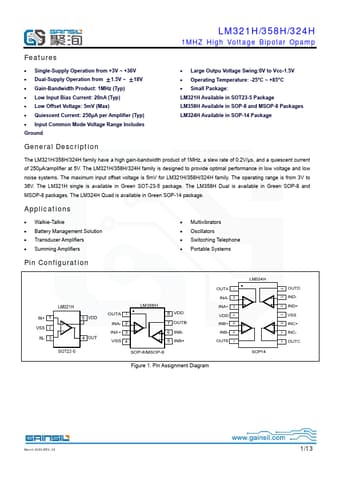

Datasheet preview – LM321H

Datasheet Details

Part number LM321H
Manufacturer GAINSIL
File Size 528.20 KB
Description 1-MHZ High Voltage Bipolar Opamp
Datasheet download datasheet LM321H Datasheet
Additional preview pages of the LM321H datasheet.

📁 Similar Datasheet

  • LM321 - Low Power Single Op Amp (National Semiconductor)
  • LM321 - Low Power Single Operational Amplifier (Texas Instruments)
  • LM321 - Low-Power 36V Op Amps (3Peak)
  • LM321 - Single Channel Operational Amplifier (ON Semiconductor)
  • LM321 - LOW POWER SINGLE OP AMP (Unisonic Technologies)
  • LM3211 - Step-up PWM DC/DC Converter (National Semiconductor)
  • LM3216 - P-MOS (ETC)
  • LM3218 - Step-Down DC-DC Converter (National Semiconductor)
  • LM321A - 36V General Purpose Op Amps (3Peak)
  • LM321LV - Low Voltage Operational Amplifiers (Texas Instruments)
Other Datasheets by GAINSIL
  • LM324H - 1-MHZ High Voltage Bipolar Opamp
  • LM358H - 1-MHZ High Voltage Bipolar Opamp

Full PDF Text Transcription

Click to expand full text
LM321H/358H/324H 1MHZ High Voltage Bipolar Opamp Features  Single-Supply Operation from +3V ~ +36V  Dual-Supply Operation from ±1.5V ~ ±18V  Gain-Bandwidth Product: 1MHz (Typ)  Low Input Bias Current: 20nA (Typ)  Low Offset Voltage: 5mV (Max)  Quiescent Current: 250μA per Amplifier (Typ)  Input Common Mode Voltage Range Includes Ground General Description  Large Outpu Voltage Swing:0V to Vcc-1.5V  Operating Temperature: -25°C ~ +85°C  Small Package: LM321H Available in SOT23-5 Package LM358H Available in SOP-8 and MSOP-8 Packages LM324H Available in SOP-14 Package The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 250μA/amplifier at 5V.
