LM321LV

Low Voltage Operational Amplifiers

LM321LV Features

* Industry standard amplifier for cost-sensitive systems

* Low input offset voltage: ±1 mV

* Common-mode voltage range includes ground

* Unity-gain bandwidth: 1 MHz

* Low broadband noise: 40 nV/√Hz

* Low quiescent current: 90 µA/Ch

* Unity-gain

LM321LV General Description

The LM3xxLV family includes the single LM321LV, dual LM358LV, and quad LM324LV operational amplifiers, or op amps. The devices operate from a low voltage of 2.7 V to 5.5 V. These op amps supply an alternative to the LM321, LM358, and LM324 in low-voltage applications that are sensitive to cost. So.

LM321LV Datasheet (3.11 MB)

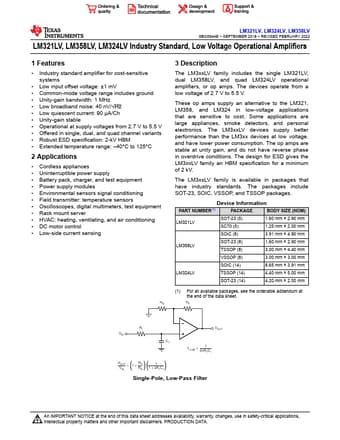

Preview of LM321LV PDF

Datasheet Details

Part number:

LM321LV

Manufacturer:

Texas Instruments ↗

File Size:

3.11 MB

Description:

Low voltage operational amplifiers.
LM321LV, LM324LV, LM358LV SBOS944E

* SEPTEMBER 2018

* REVISED FEBRUARY 2022 LM321LV, LM358LV, LM324LV Industry Standard, Low Voltage O.
