LM321

Low Power Single Op Amp

LM321 Features

* (VCC = 5V, TA = 25˚C. Typical values unless specified). n Gain-Bandwidth product 1MHz n Low supply current 430µA n Low input bias current 45nA n Wide supply voltage range +3V to +32V n Stable with high capacitive loads n Single version of LM324 Applications n n n n n Chargers Power supplies Industr

LM321 General Description

The LM321 brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/µs slew rate, the quiescent current is only 430µA/amplifier (5V). The input common mode range includes ground and therefore the device is able to operate in single supply application.

LM321 Datasheet (237.26 KB)

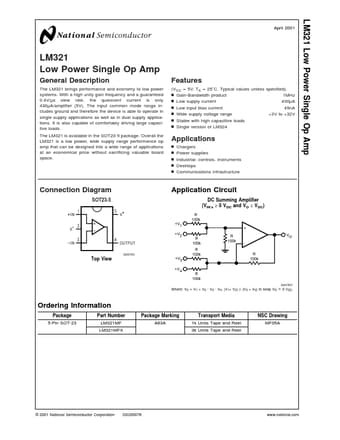

Preview of LM321 PDF

Datasheet Details

Part number:

LM321

Manufacturer:

National Semiconductor

File Size:

237.26 KB

Description:

Low power single op amp.
