LM321A - 36V General Purpose Op Amps

Datasheet Summary

Description

The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response.

Features

  • Supply Voltage: 3V to 36V.
  • Low Supply Current: 100μA per channel.
  • Input Common-Mode Voltage Range Includes Ground.
  • Can Work as Comparator.
  • Rail to Rail Output.
  • Bandwidth: 0.9 MHz.
  • Slew Rate: 0.5V/μs.
  • Excellent EMI Suppress Performance: 71dB at 1GHz.
  • Offset Voltage: ±3mV Maximum.
  • Offset Voltage Temperature Drift: 7 μV/°C.
  • 40°C to 125°C Operation Temperature Range.

📥 Download Datasheet

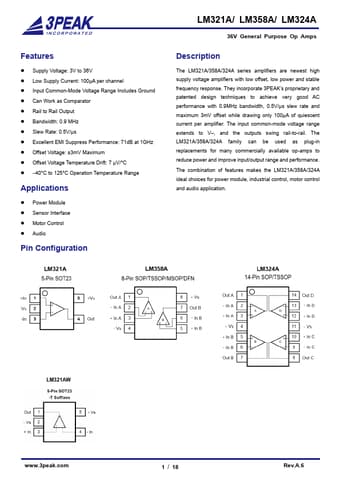

Datasheet preview – LM321A

Datasheet Details

Part number LM321A
Manufacturer 3Peak
File Size 1.10 MB
Description 36V General Purpose Op Amps
Datasheet download datasheet LM321A Datasheet
Additional preview pages of the LM321A datasheet.
