LM324 - Low-Power 36V Op Amps

This page provides the datasheet information for the LM324, a member of the LM321 Low-Power 36V Op Amps family.

Datasheet Summary

Description

Internal Frequency Compensation for Unity Gain High DC Voltage Gain: 110dB(Typ) Wide Bandwidth at Unity Gain: 1.2MHz(Typ) Wide Power Supply Range: 3V to 36V Dual Supplies: ±1.5V to ±18V EMIRR IN+: 71dB(Under 1GHz) Low Supply Current: 100μA(Typ) Offset

3Peak

📥 Download Datasheet

Datasheet Details

Part number	LM324
Manufacturer	3Peak
File Size	763.33 KB
Description	Low-Power 36V Op Amps
Datasheet	LM324 Datasheet

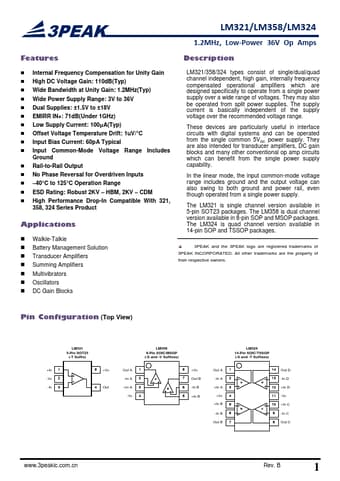

Additional preview pages of the LM324 datasheet.
