LM324 - Low-power quad operational amplifiers

STMicroelectronics

📥 Download Datasheet

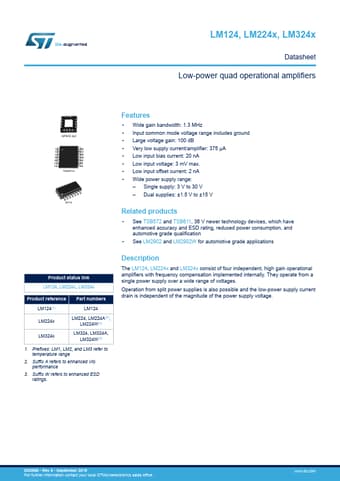

LM324 Datasheet Preview — Preview of LM324 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM324
Manufacturer	STMicroelectronics ↗
File Size	1.05 MB
Description	Low-power quad operational amplifiers
Datasheet	LM324-STMicroelectronics.pdf

LM324 Product details

Description

The LM124, LM224x and LM324x consist of four independent, high gain operational amplifiers with frequency compensation implemented internally.

Features

Wide gain bandwidth: 1.3 MHz.
Input common mode voltage range includes ground.
Large voltage gain: 100 dB.
Very low supply current/amplifier: 375 µA.
Low input bias current: 20 nA.
Low input voltage: 3 mV max.
Low input offset current: 2 nA.
Wide power supply range:.
Single supply: 3 V to 30 V.
Dual supplies: ±1.5 V to ±15 V Related products.
See TSB572 and TSB611, 36 V newer technology devices,.
