LM324 Quadruple Operational Amplifier

LM324 Description

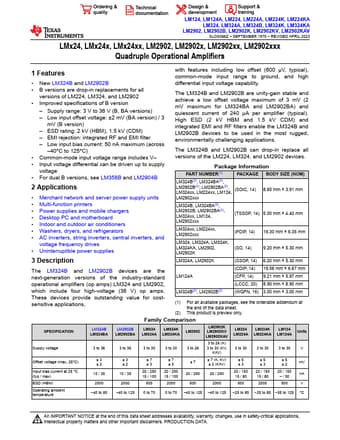

LM124, LM124A, LM224, LM224A, LM224K, LM224KA LM324, LM324A, LM324B, LM324K, LM324KA LM2902, LM2902B, LM2902K, LM2902KV, LM2902KAV SLOS066Z * .
with features including low offset (600 µV, typical), common-mode input range to ground, and high differential input voltage capability.

LM324 Features

* New LM324B and LM2902B
* B versions are drop-in replacements for all versions of LM224, LM324, and LM2902
* Improved specifications of B version
* Supply range: 3 V to 36 V (B, BA versions)
* Low input offset voltage: ±2 mV (BA version) / 3 mV (B version)

LM324 Applications

* Merchant network and server power supply units
* Multi-function printers
* Power supplies and mobile chargers
* Desktop PC and motherboard
* Indoor and outdoor air conditioners
* Washers, dryers, and refrigerators
* AC inverters, string inver
