GC1212DL Datasheet - GCi Technologies

GC1212DL 10W DC-DC Converter

technolog es 10 W DC-DC Converter Mechanical Requirements PIN CONNECTIONS Pin # Single Output 1 +Vin 2 -Vin 3 +Vout 4 No pin 5 -Vout Dual Output +Vin -Vin + Vout Common -Vout Electrical Specifications s Voltage accuracy: 1% s Line regulation: 0.1% s Load regulation: 0.5% s Ripple & noise (20 MHz BW): 50 mV max s Transient response: 250 us max for 25% load step change s Protection: over current & short circuit protection s Efficiency: 80% typical s Isolation voltage: 500 Vdc min s .

GC1212DL Datasheet (58.47 KB)

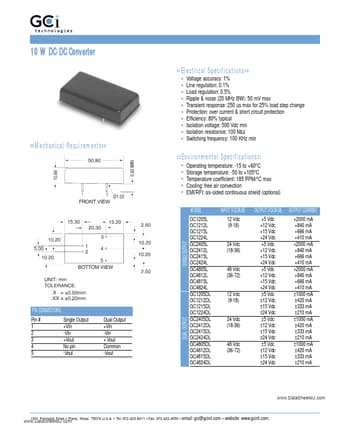

Preview of GC1212DL PDF

Datasheet Details

Part number:

GC1212DL

Manufacturer:

GCi Technologies

File Size:

58.47 KB

Description:

10w dc-dc converter.
