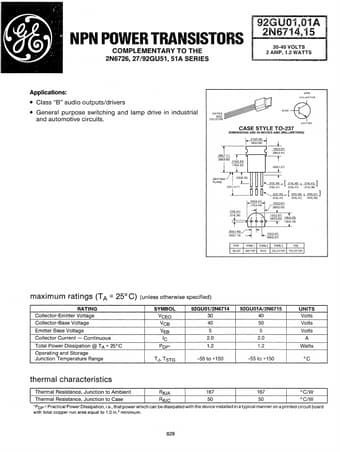

2N6715, 2N6714 NPN POWER TRANSISTORS

2N6715 Description

NPN POWER TRANSISTORS COMPLEMENTARY TO THE 2N6726, 27/92GU51, 51A SERIES 92GU01,01A 2N6714,15 30-40 VOLTS 2 AMP, 1.2 WATTS Applications: * C.

2N6715 Applications

* Class "8" audio outputs/drivers
* General purpose switching and lamp drive in industrial and automotive circuits. NPN BAS~ E~ EMITTER COLLECTOR COLLECTOR EMITTER CASE STYLE TO-237 DIMENSIONS ARE IN INCHES AND (MILLIMETERS) .105(2.67) .095(2.41) .050(1.27) ~. . La-~Tn. r

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N6715, 2N6714. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
2N6715, 2N6714
Manufacturer
GE
File Size
104.96 KB
Datasheet
2N6714-GE.pdf
Description
NPN POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: 2N6715, 2N6714.
Please refer to the document for exact specifications by model.
