CDM62256 Datasheet - GE

CDM62256 CMOS 32768-Word by 8-Bit LSI Static RAM

CDM62256 Features

* Fully static operation

* Single power supply: 4.5 V to 5.5 V

* All Inputs and outputs directly TTL compatible

* Industry standard 28-pin configuration

* Input address buffers gated off with chip disable

* Low standby and operating power: 10081 = 2

CDM62256 Datasheet (289.38 KB)

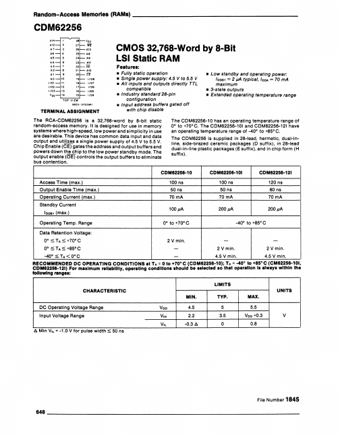

Preview of CDM62256 PDF
CDM62256 Datasheet Preview Page 2 CDM62256 Datasheet Preview Page 3

Datasheet Details

Part number:

CDM62256

Manufacturer:

GE

File Size:

289.38 KB

Description:

Cmos 32768-word by 8-bit lsi static ram.
