CDP1805AC - CMOS 8-Bit Microprocessor

Datasheet Summary

Features

  • Instruction time of 3.2 fJS, -40 to +85°C.
  • 123 instructions - upwards software compatible with CDP1802.
  • BCD arithmetic instructions.
  • Low-power IDLE mode.
  • Pin com{!atible with CDP1802 except for terminal 16.
  • 64K-byte memory address capability.
  • 64 bytes of on-chip RAM'".
  • 16 x 16 matrix of on-board registers.
  • On-chip crystal or RC controlled oscillator.
  • 8-bit Counter/Timer ",CDP1805AC only The RCA-CDP1805A.

📥 Download Datasheet

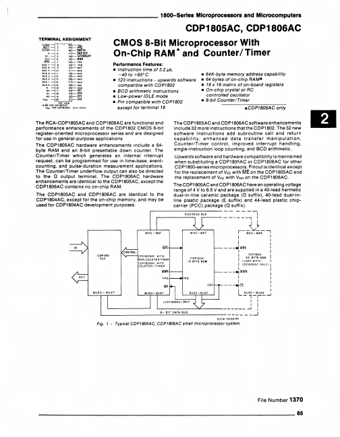

Datasheet preview – CDP1805AC
