CDP1823 - 128-Word x 8-Bit Static Random-Access Memory

Datasheet Summary

Features

  • Fast access time: 450 ns at Voo= 5 V; 250 ns at Voo = 10 V.
  • Common data inputs and outputs.
  • Multiple-chip select inputs to simplify memory system expansion The RCA-CDP1823 and CDP1823C are 128-word by 8-bit CMOS SOS static random-access memories. These memories are compatible with general-purpose microprocessors. The two memories are functionally identical. They differ in that the CDP1823 has a recommended operating voltage range of 4 to 10.5 volts, and the CDP1823C.

📥 Download Datasheet

Datasheet preview – CDP1823

Datasheet Details

Part number CDP1823
Manufacturer GE
File Size 254.00 KB
Description 128-Word x 8-Bit Static Random-Access Memory
Datasheet download datasheet CDP1823 Datasheet
Additional preview pages of the CDP1823 datasheet.

📁 Similar Datasheet

  • CDP1823 - 128-Word x 8-Bit LSI Static RAM (Intersil Corporation)
  • CDP1823C - High-Reliability CMOS 128-Word x 8-Bit Static RAM (Intersil Corporation)
  • CDP1821C - High-Reliability CMOS 1024-Word x 1-Bit Static RAM (Intersil Corporation)
  • CDP1821C3 - High-Reliability CMOS 1024-Word x 1-Bit Static RAM (Intersil Corporation)
  • CDP1822 - 256-Word x 4-Bit LSI Static RAM (Intersil Corporation)
  • CDP1822C - High-Reliability CMOS 256-Word x 4-Bit LSI Static RAM (Intersil Corporation)
  • CDP1822C3 - High-Reliability CMOS 256-Word x 4-Bit LSI Static RAM (Intersil Corporation)
  • CDP1824 - 32-Word x 8-Bit Static RAM (Intersil Corporation)
  • CDP1824C - 32-Word x 8-Bit Static RAM (Intersil Corporation)
  • CDP1826C - CMOS 64-Word x 8-Bit Static RAM (Intersil Corporation)
Other Datasheets by GE
  • CDP1823C - 128-Word x 8-Bit Static Random-Access Memory
  • CDP1822 - 256-Word by 4-Bit LSI Static Random-Access Memory
  • CDP1822C - 256-Word by 4-Bit LSI Static Random-Access Memory
  • CDP1824 - 32-Word x 8-Bit Static Random-Access Memory
  • CDP1824C - 32-Word x 8-Bit Static Random-Access Memory
  • CDP1826C - CMOS 64-Word x 8-Bit Static Random-Access Memory
  • CDP1802A - CMOS 8-Bit Microprocessor
  • CDP1802AC - CMOS 8-Bit Microprocessor

Full PDF Text Transcription

Click to expand full text

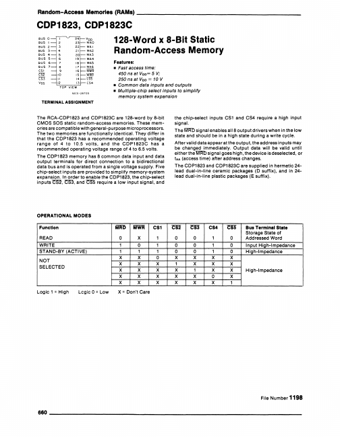

Random-Access Memories (RAMs) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ CDP1823, CDP1823C BLlS 0 eus I 2. 23 BUS 2 22 BUS 3 21 BuS 4 5 BUS 5- 6 20 19 BUS 6 8US 7 7 8 18 17 CSI 9 16 CS2 10 "c.53 V55 12 15 1" 3 TOP VIEW VDD MAO MAl MA2 MA3 MA' MA5 MAS MWR -Mmi ess C54 TERMINAL ASSIGNMENT 128-Word X 8-Bit Static Random-Access Memory Features: • Fast access time: 450 ns at Voo= 5 V; 250 ns at Voo = 10 V • Common data inputs and outputs • Multiple-chip select inputs to simplify memory system expansion The RCA-CDP1823 and CDP1823C are 128-word by 8-bit CMOS SOS static random-access memories. These memories are compatible with general-purpose microprocessors. The two memories are functionally identical.
